MODEL: DPX-I

Absorbs nuisance alarms

0-30 second adjustable delay

Power loss and cord removal alarm

Dry contact input / output

Normally Open operation



Product Description

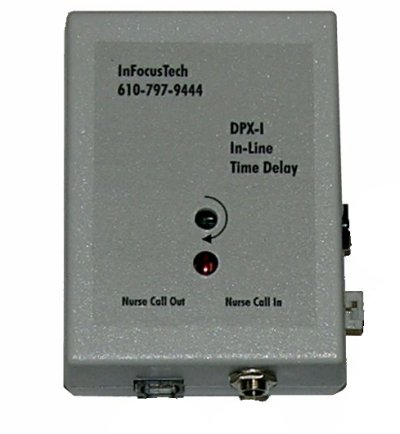

The DPX-I in line time delay is a low cost device for enhancing remote alarms by allowing intermittent nuisance alarms to be absorbed or filtered out.

When an external device alarms, the DPX-I starts counting down. When the adjustable time period is reached the DPX-I activates the Nurse Call system at the headwall and will continue to do so until the external system is reset. This delay feature will keep staff from becoming immune to constant false and nuisance alarms.

SPECIFICATIONS

Power : 24 volts D.C. U.L. listed plug in wall transformer (supplied)

Input : "Nurse Call IN" jack accepts a "dry contact" closure to from an external device equipped with a normally open nurse call cable. An adjustable 0 to 30 time delay is provided to absorb nusiance alarms.

Output: "Nurse Call Out" jack provides a "dry contact" closure to activate a customer owned nurse call system. A CA-10nc (10') cable is provided for connection to the Nurse Call system aux input jack.

Housing : Light gray ABS plastic.

Installation : 3M Dual Lock™ type tapes for easy attachment to headwall. All connections plug in via RCA, barrel and modular telephone.
