Noise Sensor



Home
Up




 Sound activated interface

Adjustable Level and Duration

Powered by host  DPX-M

3M Dual Lock™ type mounting

 "In use" L.E.D.





Product Description

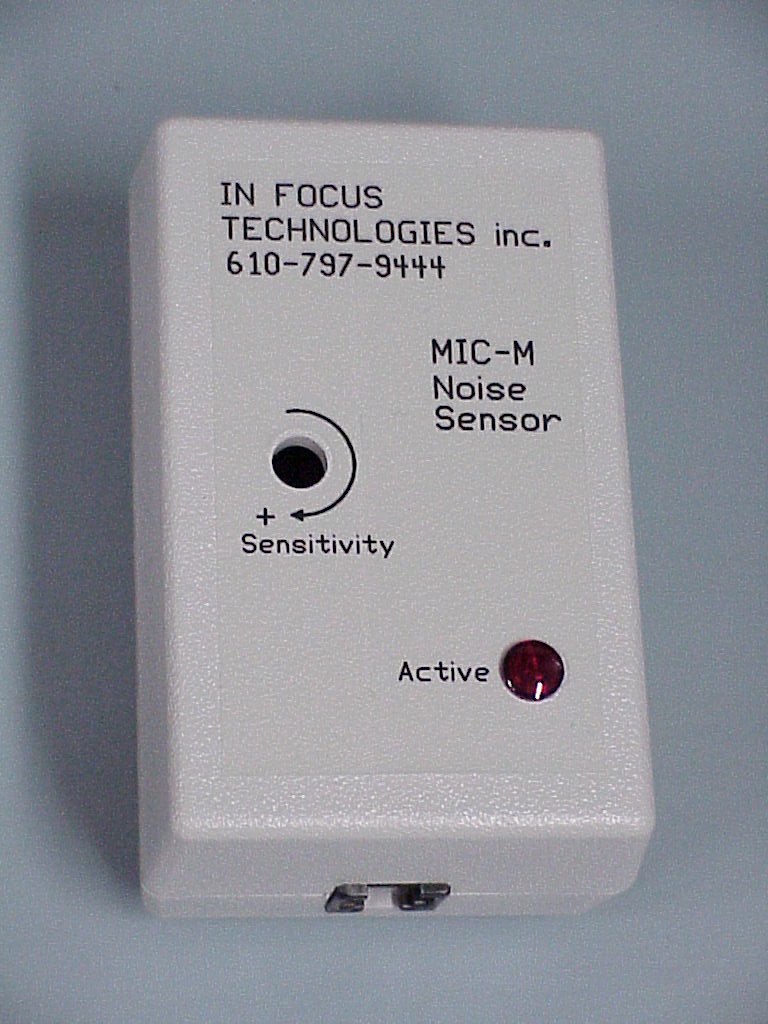

The MIC-M noise sensor is an alarm enhancement device that does not require direct connection to a monitored piece of equipment.

In operation this unit continuously "listens" for an audible alarm to be sounded. When it "hears" an alarm it sends an output the host DPX-M and the normal time delay sequence is started.

This audible sensing provides the ability to extend alarms from devices that do not provide their own auxiliary outputs.



SPECIFICATIONS

Power : 24 volts D.C. supplied by host DPX-M.

Input : Sound emissions from monitored piece of equipment.

Output : -24 volts D.C. sent to host DPX-M for time delay processing.

Housing : Light gray ABS plastic.

Installation : 3M Dual Lock™ type tapes for easy mounting to monitored equipment (within 2 inches of alarm buzzer). Wiring is accomplished with a 10 ft. plug ended cable .

Dimensions : 1 1/2" high, 2 1/4" deep, 3 1/2" wide.
